Fan Filter Unit FFU with High Efficiency 99.99% HEPA Filter

FOB Reference Price:Get Latest Price
$299.00 - $499.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ACFFU
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
OEM
Warranty:
1 year
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Applicable Industries:
Flat panel display,Microelectronics,Pharma
Casing Material:
SUS304/SPCC
Filter:
HEPA/ULPA
Filter Thinckness:
69mm
Airflow Velocity:
0.45m/s or customizable
Dimension(Nominal):
1200*600mm, 1200*1200mm
Fan Motor:
EBM
Gasket:
EPDM or customizable
Power Supply:
220V 1PH 50/60Hz
Airflow:
1100CMH/2200CMH
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton and Wooden Crate
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Overview

The Fan Filter Unit (FFU) is a self-contained ceiling unit for use clean room applications like semiconductor, electronics, food, flat panel display, biological pharmacy and other applications where airborne contaminates must be strictly controlled. This unit is designed to meet clean room Class 100 to Class 1.


Self-contained Fan Filter Unit
AC FFU combines a specially designed casing with a high performance A/C Fan and HEPA/ULPA filter to bring top quality products to users


Energy saving capabilities
AC FFU adopts a single phase or 3-phase power, high efficiency, long life span free maintenance motor, reduced energy consumption which leads to lower costs.


Unique design
Specially designed casing with a strong and sturdy structure prevents leakage and eliminates all FFU s resonant frequency when operating all at once. Stainless steel casing allows users to disinfectants.


High total static pressure
AC FFU provides 50 to 150 Pa of external static pressure under the rated airflow by adopting high total static pressure fan unit integrated with low resistance HEPA/ULPA filter.


Speed monitoring system
AC FFU comes with an alternative 5 steps speed controller and latest EsiDrive II electronic monitoring control system.


Low Vibration


UL507 certificated


Low Harmonic

Specifications
Input Voltage
1p, 220V, 50/60Hz
FFU Type
AC FFU
Housing Material
Gi Coating, SUS, Al
Filter Unit
HEPA/ULPA
Filter Type
Glassfiber/PTFE
UL507
Yes
Ce
Yes
Noise
<55dba
Control
Remote Control/Manual
Operating Power
<180W
Trademark
OEM
Transport Package
Corrugated Carton / Plywood Box
Specification
5 feet by 5 feet

Smart system control (EsiDrive II schematic diagram)

EsiDrive II is an electronic control Device installed in the FFU and connect with repeater, converter & computer as a FFU monitoring system.

Parameters
Item
2'x2'
2'x4'
4'x4'
Dimensions(LxW)
575x575mm
575x1175mm
1175X1175mm
Height
250+25mmm
(Inlet Collar)
275+25mm
(Inlet Collar)
310+25mm
(Inlet Collar)
TSP-Total Static Pressure 0.45m/s
190Pa
280Pa
230Pa
Energy Consumption
70~90W
130~150W
228~255W
Current
0.32~0.41A
0.59~0.68A
1.06~1.20A
Casing Material
GL/AL/SUS
Power Supply
220V 1PH 50/60Hz(380V 3PH 50/60Hz Optional)
Optimal Temperature
-25~40℃
Typical Face Velocity
0.3~0.5m/s
Filter Media/Thickness
Fiberglass/69mm
Filter Efficiency
H13~U16
ESP-External Static Pressure
90Pa
Noise Level
49~54dBA
52~56dBA
Weight(for GL)
15~18Kg
23~27Kg
37.5~40.5Kg
Control Sysytem
EsiDrive II / 5 Step(TSC-10)
Optimal Items
On/Off Indicating Light/DOP Injection Port/DOP Sampling Port/
Pressure Test Port/Pressure Alarm

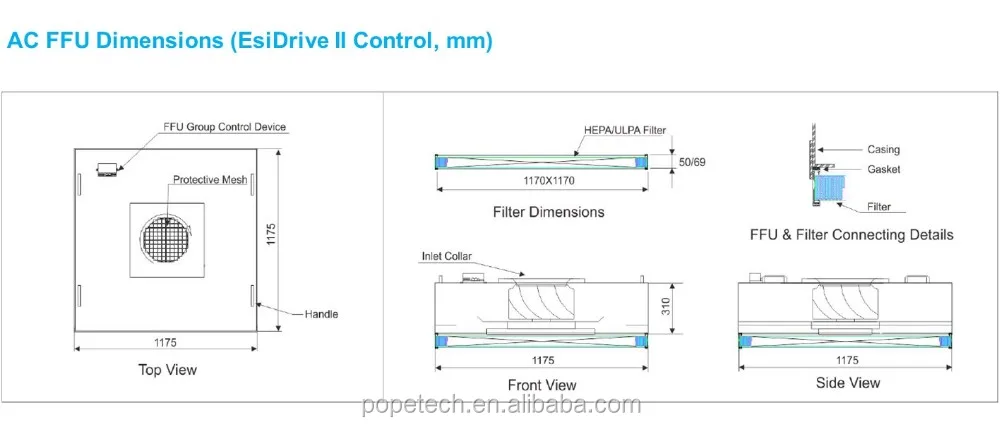

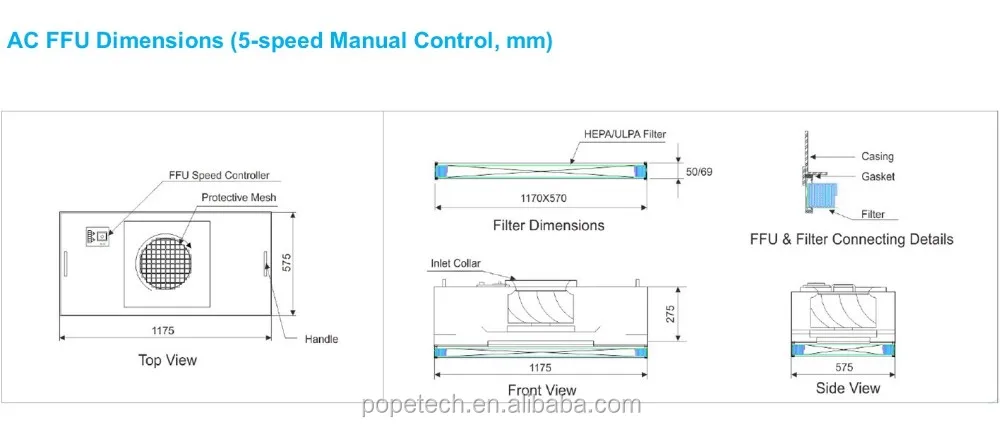

Dimensions
