Equipment Fan Filter Unit EFU

FOB Reference Price:Get Latest Price
$299.00 - $499.00 / Set | 1 Set/Sets (Min. Order)
Filtration Grade:
Hepa Filter
Medium Material:
Fiberglass
Model Number:
EFU
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
OEM
Weight:
Light Weight
Certification:
ISO9001
Efficiency:
99.999%
Construction:
Filter Equipment
Porosity:
0.3u
Dimension(L*W*H):
Customized Size
Applicable Industries:
Flat panel display,Microelectronics,Semiconductor
Casing Material:
SUS304/SPCC/GI/AL
Filter:
HEPA/ULPA
Filter Media:
Fiberglass or PTFE
Filter Thinckness:
69mm
Airflow Velocity:
0.45m/s or customizable
Dimension(Nominal):
1167*1167*235mm
Fan Motor:
EC, AC, DC
Gasket:
EPDM or customizable
Power Supply:
220V 1PH 50/60Hz, DC 48V
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton and Wooden Crate
Port
Shanghai
Product Overview

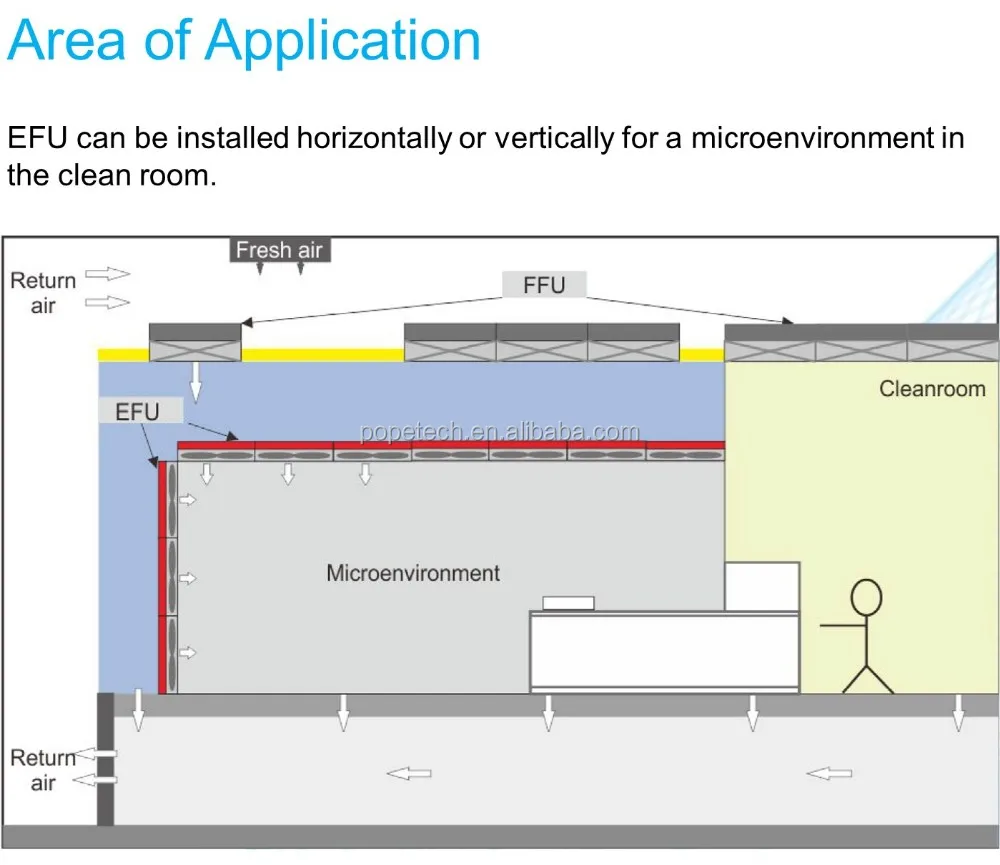

Equipment Fan Filter Unit (EFU) is an ultrathin fan filter used for equipment. It is widely used in cleanrooms to increase localized microenvironment cleanliness, and can stringently control the number of suspended particles, chemical and molecular contaminants.


Ultrathin, low noise level

The thickness of EFU can be as thin as 180 mm, using a variety of fans together with high-strength casing. The use of a special structure can effectively reduce disturbing flow, maximally reducing noise. Optional internal or external flanging structure, easy installation, operation and maintenance allows the EFU to be installed in different environments.


Intelligent system control
EC EFU adopts eLisa control system, which can achieve large-scale integrated control and meanwhile control each EFU individually. The eLisa system can also indicated the followings: operator logging, energy consumption analysis, diagnosis, error messages and error localization, graphics, etc.


Negligible off-gassing properties
All components used are made of low off-gassing materials and are meticulously tested. For the casing, stainless steel, Galvalume, DPCC, or aluminum can be selected. Equipped with PTFE filters containing little boron, sodium, potassium, silicon or other elements, the EFU has negligible off-gassing properties.

Specifications

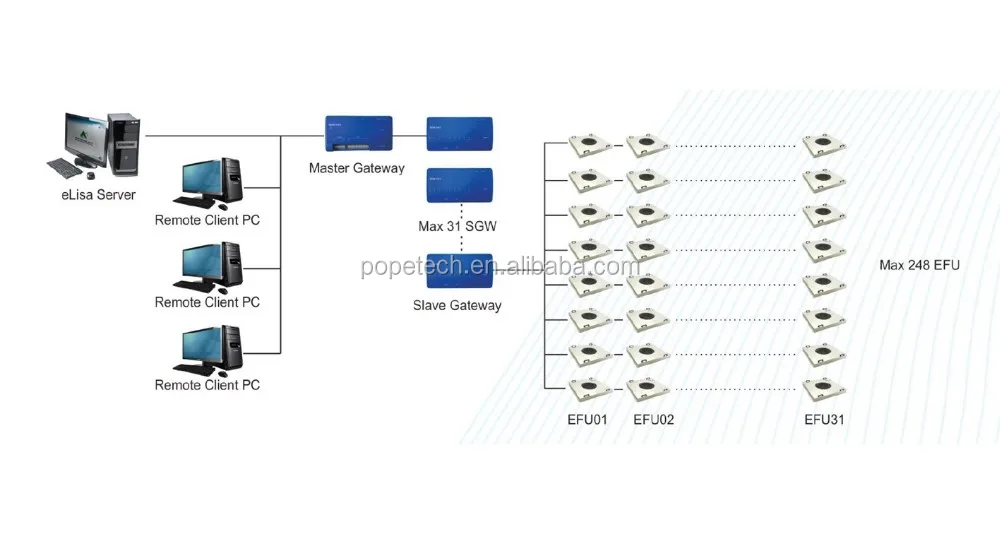

EFU Control System – eLisa

EC EFU can be controlled singly manually, or controlled by the eLisa system. eLisa uses a system hot and remote terminal system with a central computer as a client. The system can monitor the statuses of all the EFU and control each EFU individually, in sectors or in groups depending on the situation.

Efficiency
100.00%
Construction
Filter Equipment
Filtration Grade
Hepa Filter
Medium Material
Fiberglass
Porosity
0.3u
Model Number
EFU
Dimension(L*W*H)
Customized Size
Weight
Light Weight
Certification
ISO9001
Casing Material
SUS304/SPCC/GI/AL
Filter
HEPA/ULPA
Filter Media
Fiberglass or PTFE
Filter Thinckness
69mm
Airflow Velocity
0.45m/s or customizable
Dimension(Nominal)
1167*1167*235mm
Fan Motor
EC, AC, DC
Gasket
EPDM or customizable
Power Supply
220V 1PH 50/60Hz, DC 48V
After-sales Service Provided
Engineers available to service machinery overseas

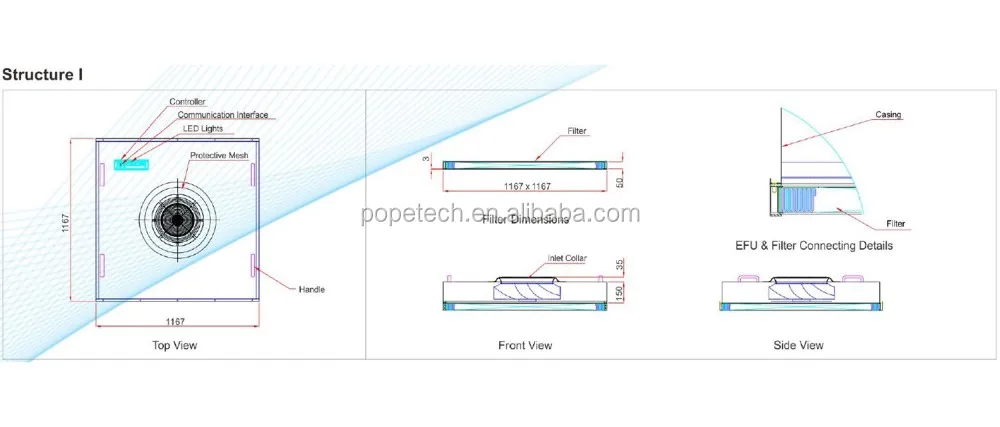

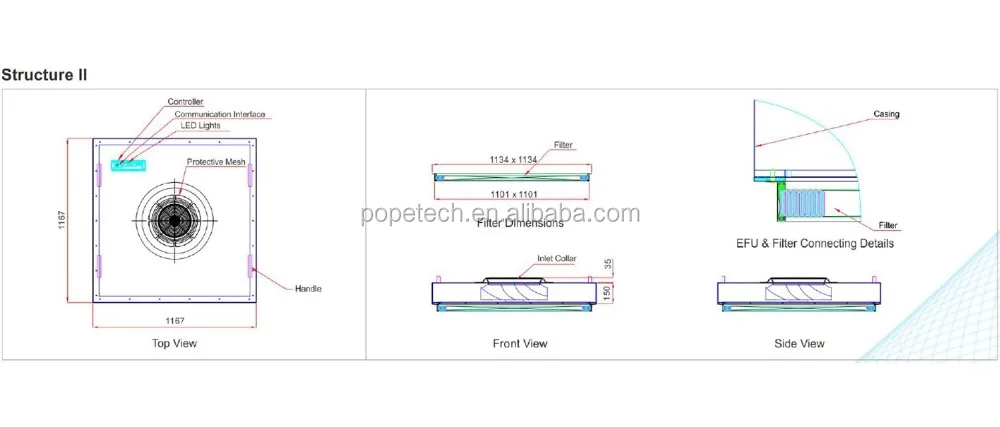

Structure
