SUS304/SPCC Coating Self-contained Pharmaceutical Air Shower Room

FOB Reference Price:Get Latest Price
$999.00 - $3,999.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ASR
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
OEM
Voltage:
220V/50HZ
Weight:
360kg-1300kg
Certification:
ISO9001
Warranty:
5 years
Dimension(L*W*H):
Customizable
Power(W):
Customizable
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Applicable Industries:
Food & Beverage Factory, Home Use, Food & Beverage Shops
Casing Material:
SUS, Powder Coated Steel
Capacity of Passenger:
1~6, or customized
Dimension:
Customized
Airflow Velocity:
~25m/s
Air Change Rate:
740 per hour
Shower Time:
30 Sec (adjustable)
Noise:
<62dB
HEPA Filter:
99.99% efficient @ 0.3 micron particles
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton and Wooden Crate
Port
Shanghai
Product Description

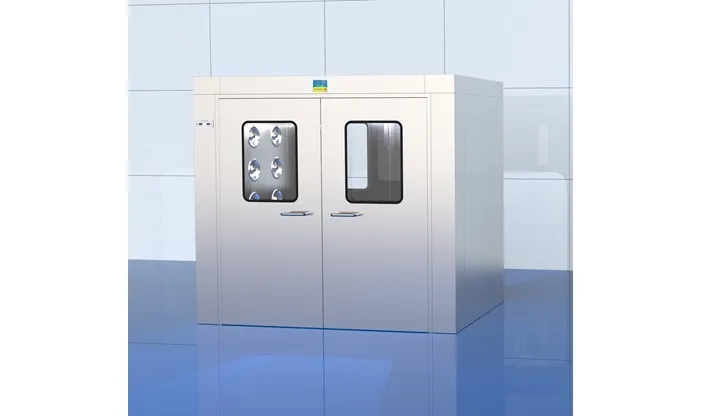

SUS304/SPCC Coating Self-contained Pharmaceutical Air Shower Room And Tunnel For Cleanroom Entrance


Product Introduction

These self-contained Air Showers and Tunnels offer an effective way to remove surface-deposited particles from personnel prior to entering the cleanroom. Each unit is shipped in two fully assembled sections (top housing and air shower chamber), allowing installers to quickly put the Air Shower into service.


Feature


1. HEPA filter/blower modules (rated 99.99% efficient @ 0.3 micron particles);
2. Solid-state microprocessor panel: programmable control over access door operation;
3. Electromagnetic interlocking doors:
4. Energy-efficient LED light ;
5. White powder-coated or stainless steel finishes;
6. Variety of sizes and door configurations;
7. Economical to operate and easy to maintain;
8. Custom sizes and configurations: available;

Specification
Product Name
Clean Air Shower Room
Certification
ISO9001
Warranty
5 years
Casing Material
SUS, Powder Coated Steel
Capacity of Passenger
1~6, or customized
Air Change Rate
740 per hour
Airflow Velocity
~25m/s
Shower Time
30 Sec (adjustable)
HEPA Filter
99.99% efficient @ 0.3 micron particles
Noise
<62dB
Power(W)
220V/50HZ,Customizable
Dimension(L*W*H)
Customizable
Weight
360kg-1300kg
Detailed Images

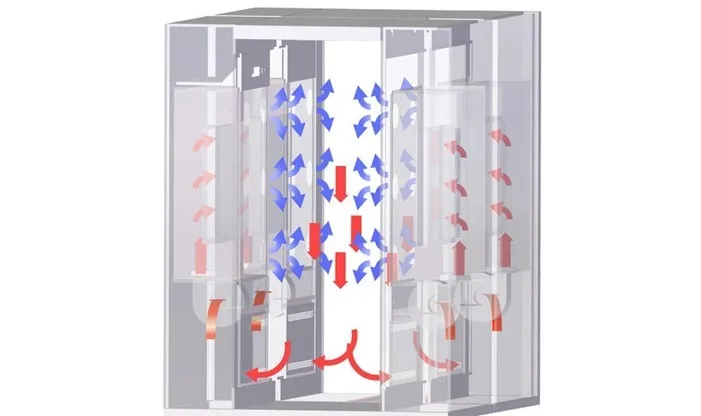

Class 100 Clean Airflows

Air Showers supply concentrated Class 100 clean airflows to lift off contamination while an individual occupies the air enclosure. Whenever the shower cycle commences, pressurized air streams from adjustable nozzles at a velocity of up 25 m/s.

Energy-efficient for Higher ROI

Equipped with HEPA filter and permanently lubricated centrifugal fan, the circulating air can be recycled inside the room to save the energy cost.

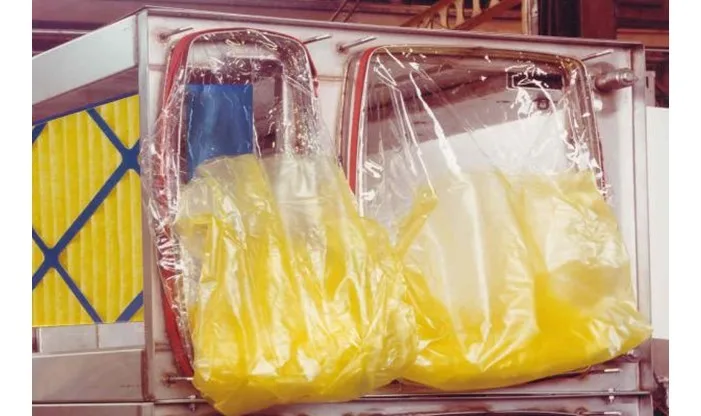

Bag-In/Bag-Out Filter Replacement

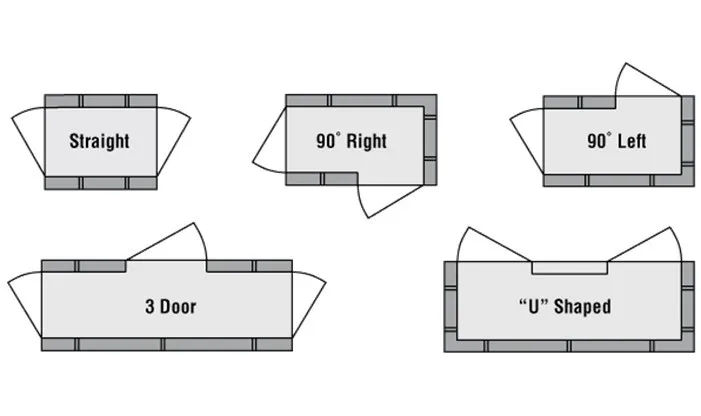

Door Opening Direction


Air Shower FAQs

What is an air shower?

Air showers are antechambers that help decontaminate personnel prior to their entering a critical environment. Decontamination is completed through a cycle where air is blown through nozzles that are evenly distributed throughout the enclosure walls. This air is recirculated through filters (typically HEPA filters) and clears dust and dirt particles off the bodies of personnel.

Can custom air showers be manufactured?

POPETECH offers both standard and custom air showers. Please contact us for more information.

Is it possible to alter the settings on the air shower?

POPETECH's air showers allow the operator flexibility to program numerous settings using an easy-to-use touch-screen control panel. You can easily set cycle operation times, entrance/exit delays, when the lights turn off/on, and more.

How do you ship your air showers?

POPETECH normally ships air showers as pre-assembled systems. However, you can request to have your order shipped disassembled for easier transport through standard doorways or more space-restrictive access areas.

What is the air flow velocity inside the air shower?

When the shower cycle commences, pressurized air streams from adjustable nozzles at a velocity of up to 25 meters per second. This ensures the necessary efficient scrubbing action to remove particulate matter.

Can I control the lights independently from the air shower cycle?

POPETECH's air showers come standard with occupancy sensors that, when triggered by personnel presence, turn on the lights in the enclosure. A delay time is programmable to automatically turn off these smart lights.

How can I rate the efficacy of my air shower?

You can rate the efficacy of the air shower by measuring the air flow velocity at each nozzle. Each nozzle is designed to provide up to 25 meters per second of air flow. If the measured velocities fall significantly short of 25 meters per second, check whether the HEPA filters need to be replaced.

Can your air showers work in the opposite mode?

POPETECH's air showers come standard with the capability to reverse the function of the entrance and exit doors at the touch of a button.

How often do the HEPA filters need to be replaced?

The frequency at which the HEPA filters need to be replaced depends on each application. Test when the filters need to be replaced if air flow at the air nozzles reduces significantly.
