Large Filtration Area V Type Box Hepa Filter V Bank Box HEPA Filter Box For Cleanroom & HVAC

FOB Reference Price:Get Latest Price
$89.00 - $149.00 / Piece | 5 Piece/Pieces (Min. Order)
Filtration Grade:
Hepa Filter
Medium Material:
Fiberglass
Model Number:
VBH
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
OEM
Weight:
Light Weight
Certification:
ISO9001:2008
Efficiency:
H13/H14
Construction:
Box Filter
Porosity:
0.3u
Dimension(L*W*H):
Customized Size
Applicable Industries:
Building Material Shops, Construction works
Filter Depth:
12" (292mm)
Header:
25mm
Frame Material:
ABS/GL/GL with black coating
Face Guard:
GI (optional)
Gasket:
EPDM
Separator:
Hotmelt
Max. Operation Temperature:
158°F (70℃)
Size:
Standard or Customized
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton and Wooden Crate
Port
Shanghai
Product Overview

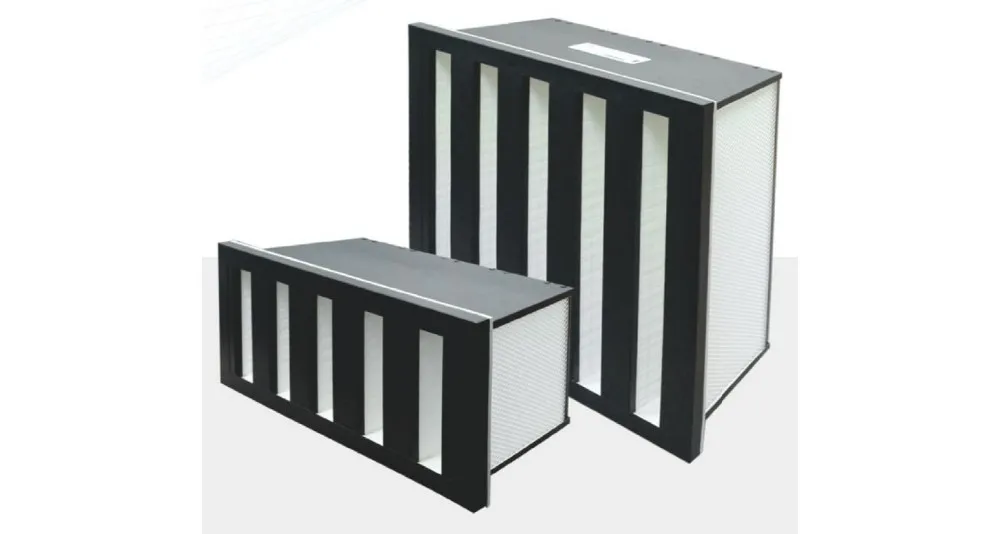

Large Filtration Area V Type Box Hepa Filter V Bank Box HEPA Filter Box For Cleanroom & HVAC


Product Feature


1. Ideal for demanding operating conditions in critical applications
2. High-capacity operation with minimal resistance to airflow
3. Longer service life
4. Faceguard in the side
5. Low energy consumption and lower operating costs

6.10 mini-pleat media packs, assembled into 5 V-banks

7.Greater airflow capacity, low resistance, high dust holding capacity, and long service life

Product Specification

Filter Depth
12'(292mm)
Header
25mm
Efficiency
H16(EN1822)
Media
Fiberglass

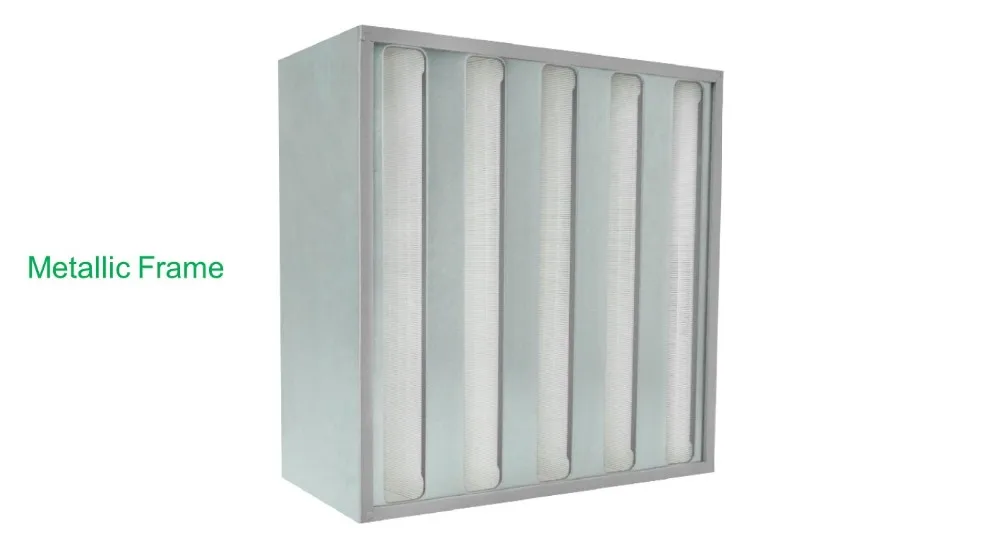

Frame Material
GI,black coating
Face guard
GI(optional)
Gasket
EPDM
Seperator
Hotmelt
Max Operationg Temperature
158'F(70℃)
Specical size available
No

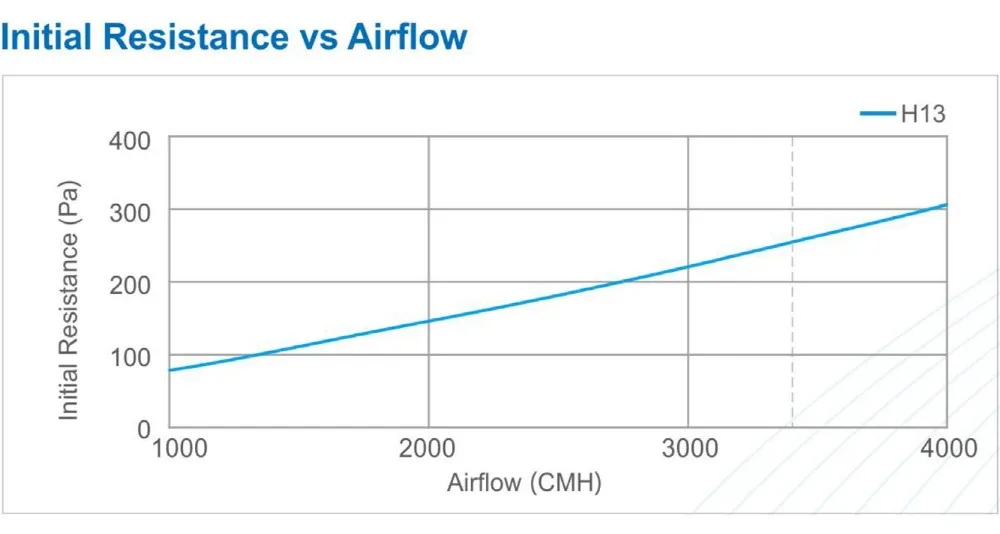

Nominal Size(Inches) H*W*D
Actual Size(mm)       H*W*D
Airflow(CMH)
Rated Initial Resistance(Pa)                H13
24*24*12
592*592*592
3400
250
20*24*12
490*592*292
2800
250
12*24*12
287*592*292
1500
250
Products Show
Quality Control

Laser particle counters with liquid or solid aerosol challenge

Pinhole leaks can be detected by using either proprietary static test or automatic scan test
