Pharmaceutical Gel HEPA Filter RadiCel II Gel

FOB Reference Price:Get Latest Price
$79.00 - $139.00 / Piece | 10 Piece/Pieces (Min. Order)
Filtration Grade:
Hepa Filter
Medium Material:
Fiberglass
Model Number:
RadiCel II Gel
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Place of Origin:
China
Brand Name:
OEM
Weight:
Light Weight
Certification:
ISO9001:2008
Efficiency:
H13/H14/U15/U16 (EN1822)
Construction:
Panel Filter
Porosity:
0.3u
Dimension(L*W*H):
Customized Size
Applicable Industries:
Hotels, Building Material Shops, Manufacturing Plant, Construction works , Advertising Company
Seal Type:
Gel
Frame Material:
Anodized Aluminum
Faceguard:
GI/AL/SUS
Separator:
Hot-melt Glue
Sealant:
Polyurethane
Max. Operation Temperature:
158°F (70℃)
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton and Wooden Crate
Port
Shanghai
Product Overview

Mini Pleated Gel Seal HEPA Air Filter Conditioning H13 H14 U15 U16 Panel Filter For Pharmaceutical Cleanroom


Product Feature


1. Mini pleat of fiberglass media with lowest resistance

2. Individually tested for certificated leak proof

3. Gel seal design

4. Hotmelt separators

5. Lightweight and compact

6. Unique construction

7. Energy saving design


Typical Applications

1-Flat Panel display
2-Microelectronics
3-IC
4-Pharma

Specification
Filter depth
Various
Efficiency
H13,H14,U15,U16
Media
Fiberglass
Frame materials
Anodized AL
Faceguard
GI/AL/SUS
Gasket
EPDM
Separator
Hotmelt
Sealant
Polyurethane
Max operating temperature
158'F(70℃)
Specical size available
Yes
Hotmelt
Sealant
Polyurethane

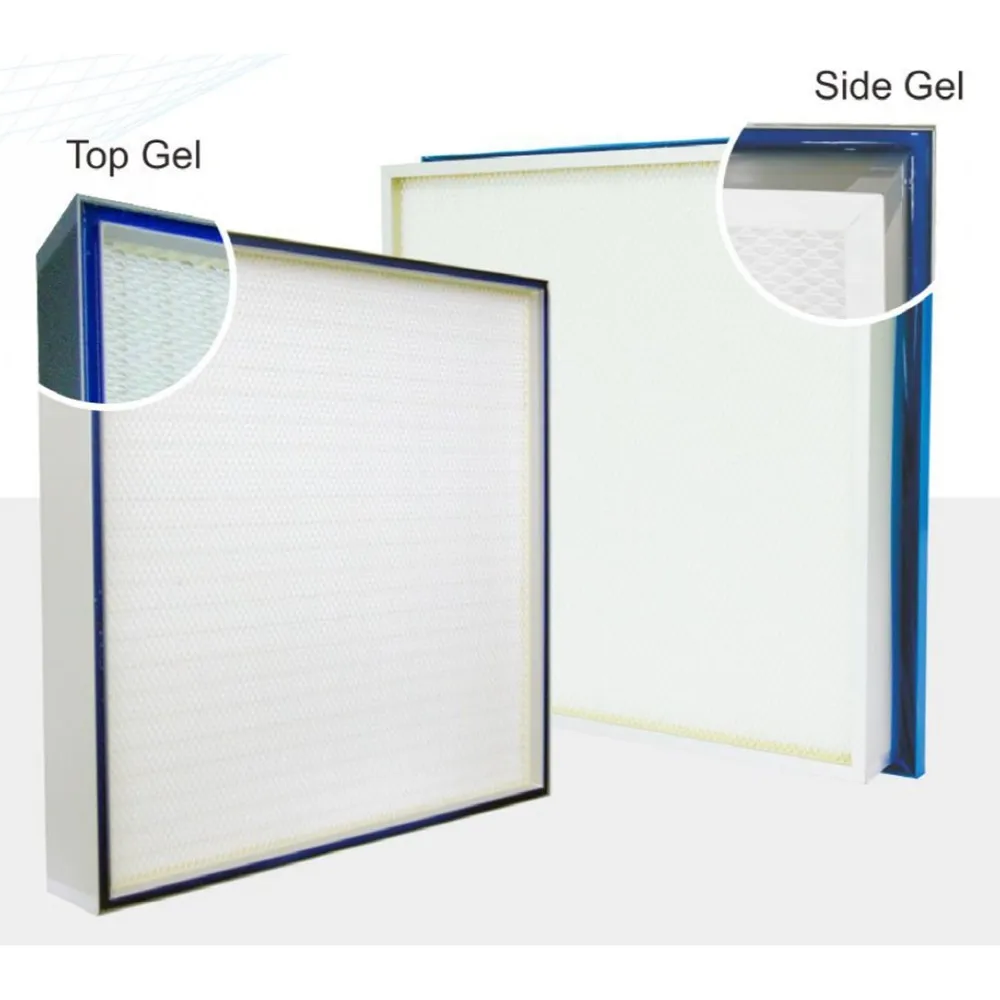

GEL TYPE
Frame Depth
(mm)
Rated Initial Resistance (Pa)
Rated Face Velocity
(m/s)
H13
H14
U15
U16

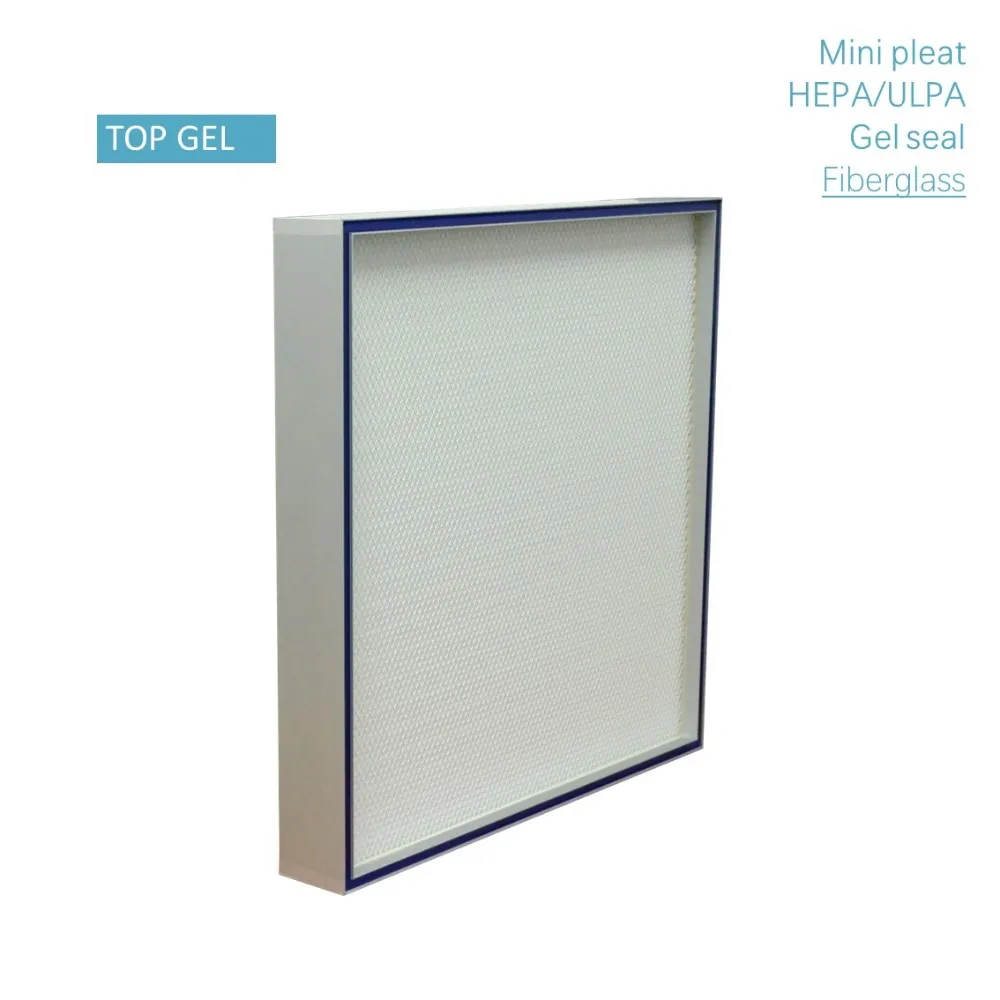

Top Gel
81
105
110
120
140
0.45
94
90
95
105
125
104
75
80
90
110

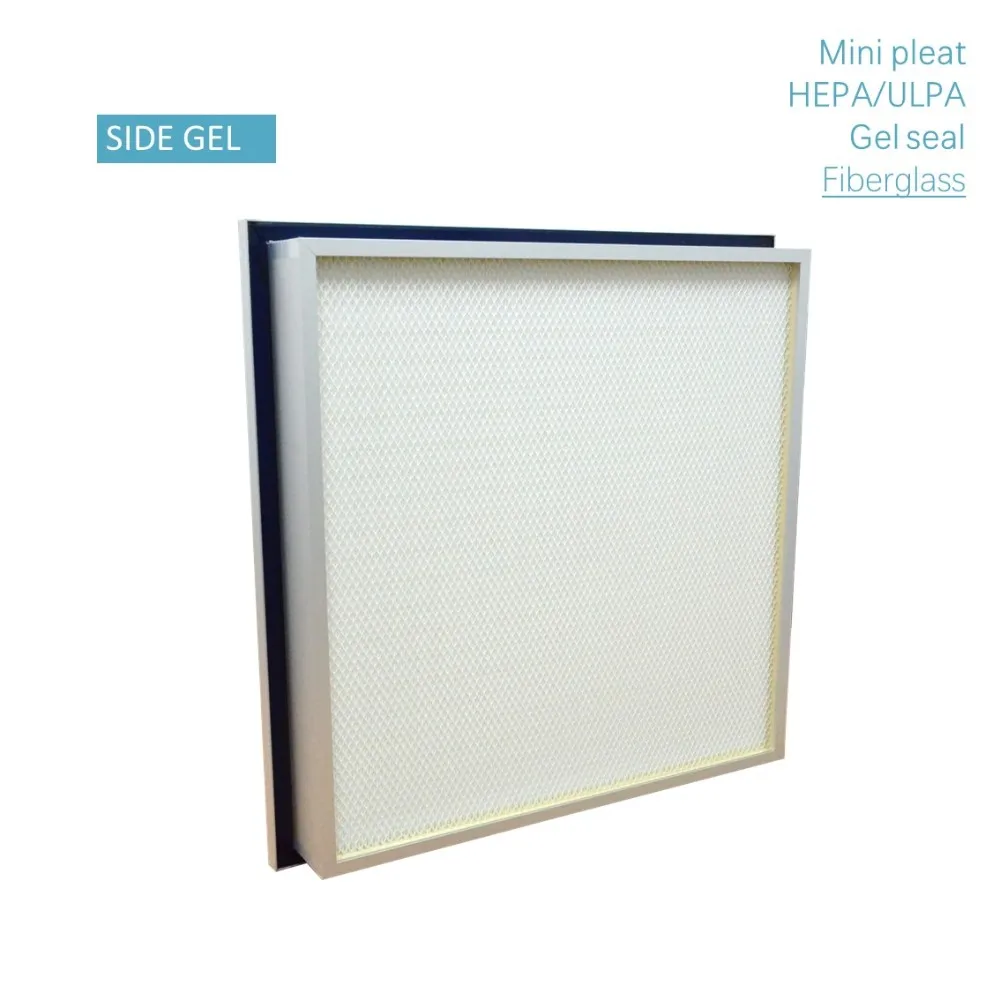

Side Gel
69
105
110
120
140
0.45
93
75
80
90
110

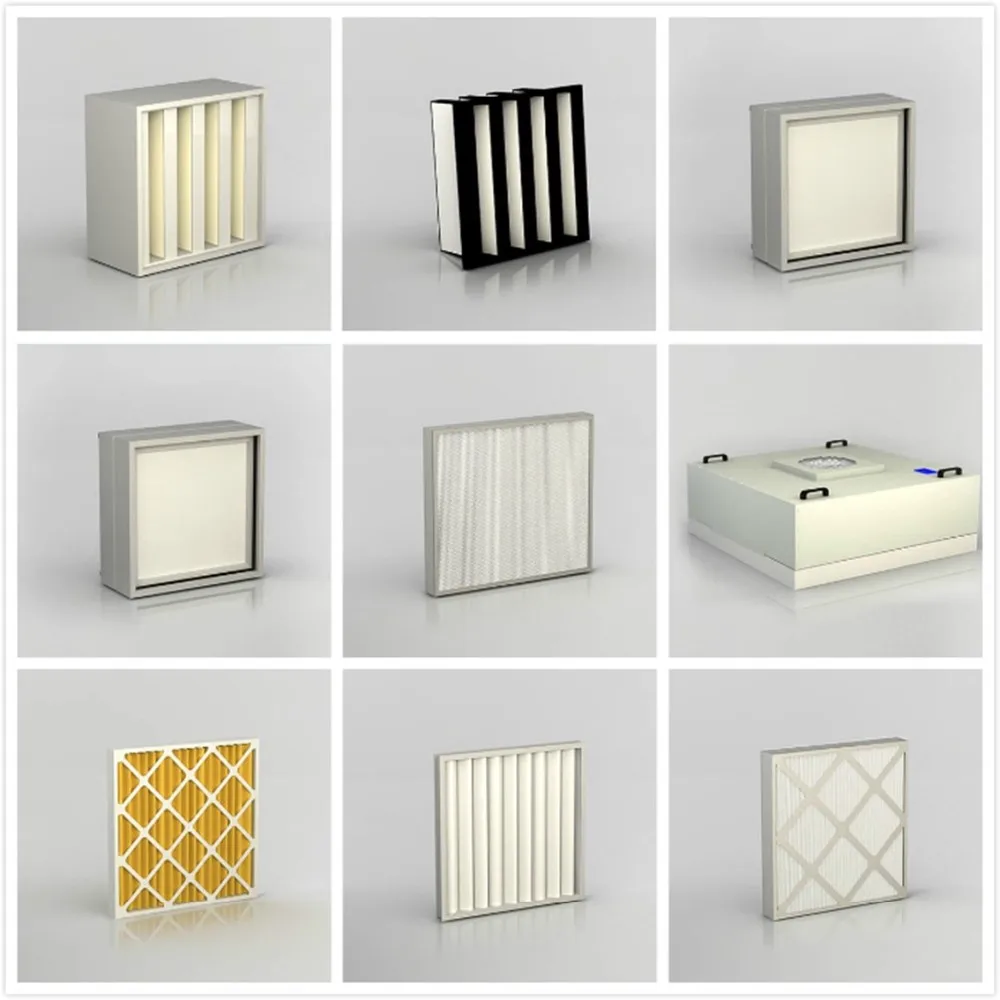

Products Show

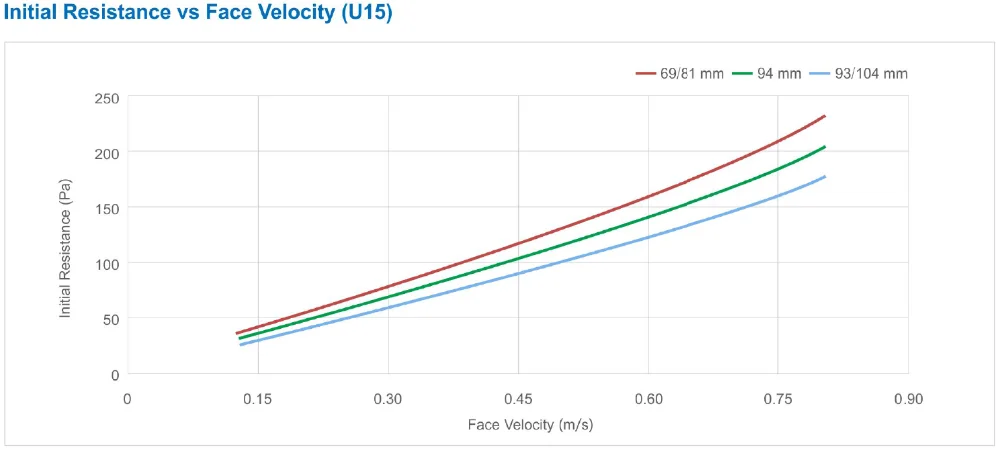

Performance

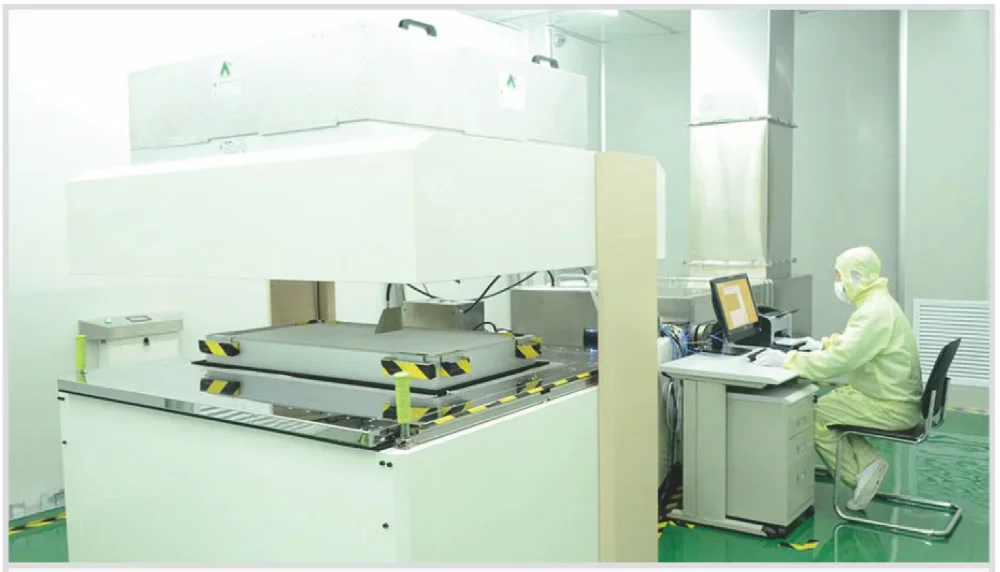

Quality Control

Laser particle counters with liquid or solid aerosol challenge

Pinhole leaks can be detected by using either proprietary static test or automatic scan test
